LY-MP-01 Modular Robot Safety Fence
1200 mm / 1000 mm
$43.00 USD
Skip to product information
LY-MP-01 Modular Robot Safety Fence
$43.00 USD
International freight, import duties, VAT/GST, destination charges and local delivery are calculated separately.

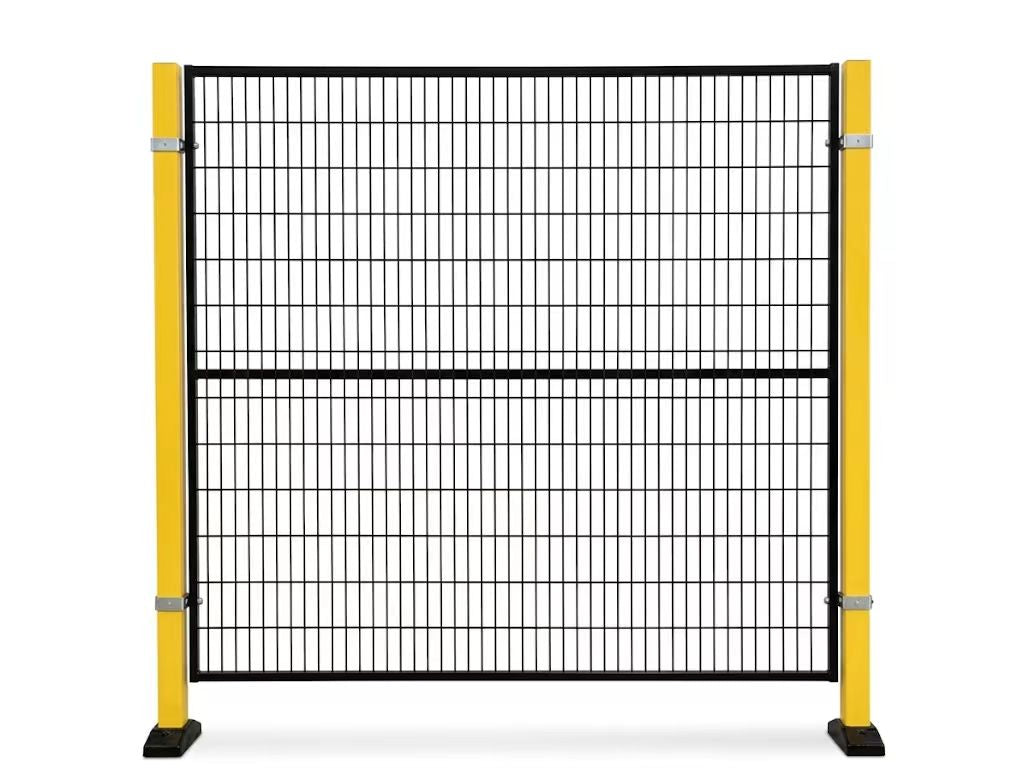

LY-MP-01 Modular Robot Safety Fence is a welded-mesh guarding system for robot cells, automated equipment and industrial work areas.
Price shown: USD per standard panel set. Each standard set includes exactly 1 mesh panel + 1 matching post, together with the mounting base, standard connection hardware and screws. Product photos may show multiple panels or posts to illustrate an installed layout; additional panels, posts, doors and accessories are not included unless ordered.
Standard construction
- Mesh opening: approximately 25 × 100 mm
- Wire diameter: approximately 3.0 mm
- Panel frame: 20 × 20 × 1.0 mm
- Post: 60 × 60 × 1.5 mm
- Finish: galvanized steel with powder coating
Ordering: choose a standard height, width and quantity, then add the selected configuration to your Quote List. Extra or replacement 60 × 60 mm posts are listed separately.
Pricing and shipping: the displayed product price includes a China-side export preparation allowance. International freight, import duties, VAT/GST or other destination taxes, destination charges and local delivery are excluded. Small quantities may require shipment-level origin handling because some export costs are charged per shipment rather than per unit.
Made to order. Lead time is confirmed with your quotation.
Hinged doors, sliding doors, locks/interlocks, extra posts and other accessories are available separately. Final suitability, guarding layout, safety distance, access-door arrangement and any required standards or compliance must be confirmed for the actual machine and installation.
Plan your fence layout
For access openings, compare the hinged access door and sliding access door. Extra or replacement 60 × 60 mm posts are listed separately; each standard panel set already includes one matching post.
For a project quotation, send the selected height and width, quantity, enclosure layout or overall dimensions, number of doors, destination country and city/postal code, and required delivery date. Drawings can be sent to henry@lianyufencingmesh.com.
STANDARD SUPPLY
Standard specifications & price
Confirmed standard construction is shown together with the price of each selectable standard configuration.
Mesh opening
Approx. 25 × 100 mm
Wire diameter
Approx. 3.0 mm
Panel frame
20 × 20 × 1.0 mm
Post
60 × 60 × 1.5 mm
Finish
Galvanized steel with powder coating
Standard set1 mesh panel + 1 matching post + mounting base + standard connection hardware + screws
STANDARD CONFIGURATIONS
Configuration price matrix
Prices below follow the currently published Shopify variant prices. Custom configurations are quoted separately.
| Height / Width | 1000 mm | 1200 mm | 1500 mm | 2000 mm |
|---|---|---|---|---|
| 1200 mm | $43.00 USD LY-MP-01-1200X1000 | $43.00 USD LY-MP-01-1200X1200 | $44.00 USD LY-MP-01-1200X1500 | $46.00 USD LY-MP-01-1200X2000 |
| 1500 mm | $44.00 USD LY-MP-01-1500X1000 | $45.00 USD LY-MP-01-1500X1200 | $46.00 USD LY-MP-01-1500X1500 | $49.00 USD LY-MP-01-1500X2000 |
| 2000 mm | $47.00 USD LY-MP-01-2000X1000 | $48.00 USD LY-MP-01-2000X1200 | $50.00 USD LY-MP-01-2000X1500 | $52.00 USD LY-MP-01-2000X2000 |
CUSTOM CAPABILITY
What can be changed for your project
Customization is defined against the attributes of this product. Only confirmed capabilities are shown.
Width
StandardSee standard configuration matrix
Custom optionsCustom width available
Color
Custom optionsRAL color matching available
Mesh opening
StandardApprox. 25 × 100 mm
Custom options50 × 50 mm; 50 × 100 mm
PRODUCT STRUCTURE
What the product consists of
Included in the standard set
- 1 mesh panel
- 1 matching post
- Mounting base
- Standard connection hardware
- Screws
Available separately
- Hinged doors
- Sliding doors
- Locks / interlocks
- Extra posts
- Other accessories
APPLICATION FIT
Where it is used and what it is for
Applications
- Robot cells
- Automated equipment
- Industrial work areas
SELECTION GUIDE
Information needed to select or quote the product
01 · Height02 · Width03 · Quantity04 · Enclosure layout or overall dimensions05 · Number of doors06 · Destination country07 · Destination city / postal code08 · Required delivery date

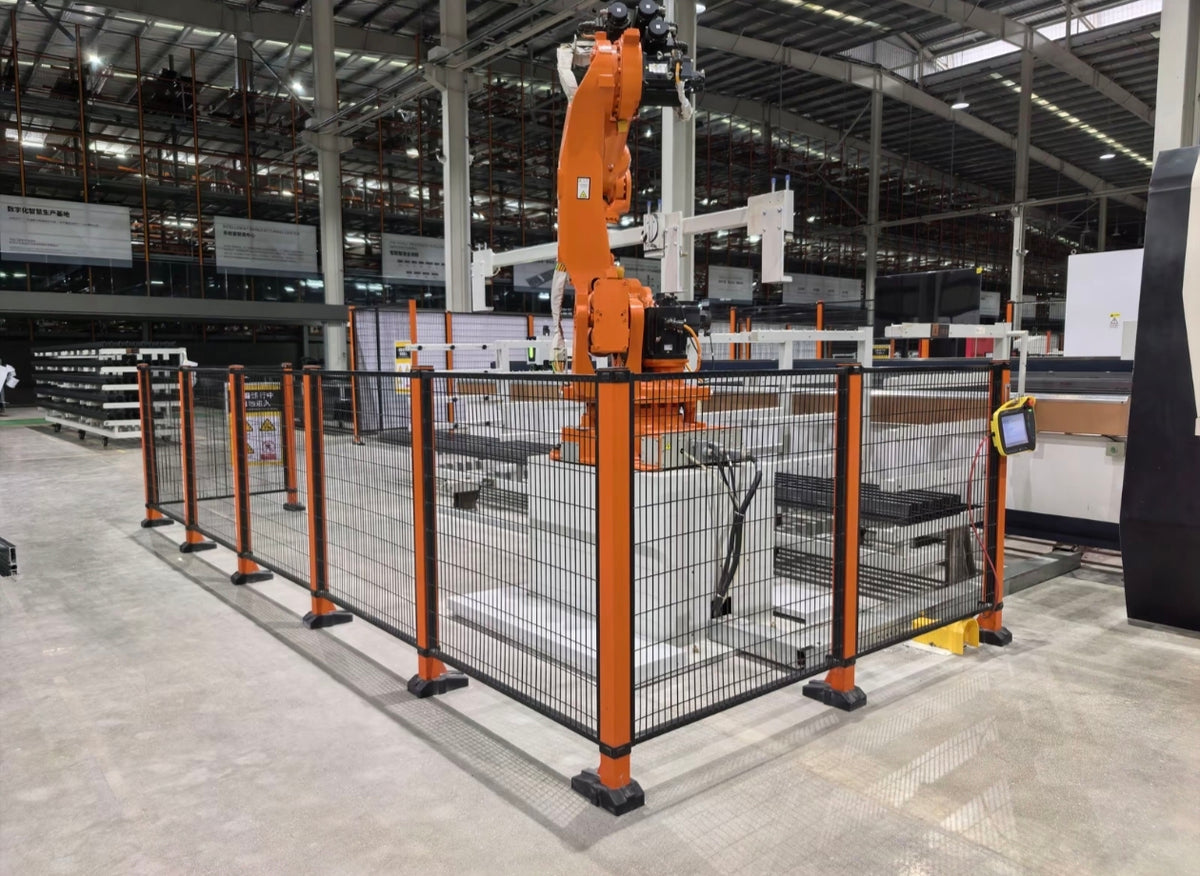

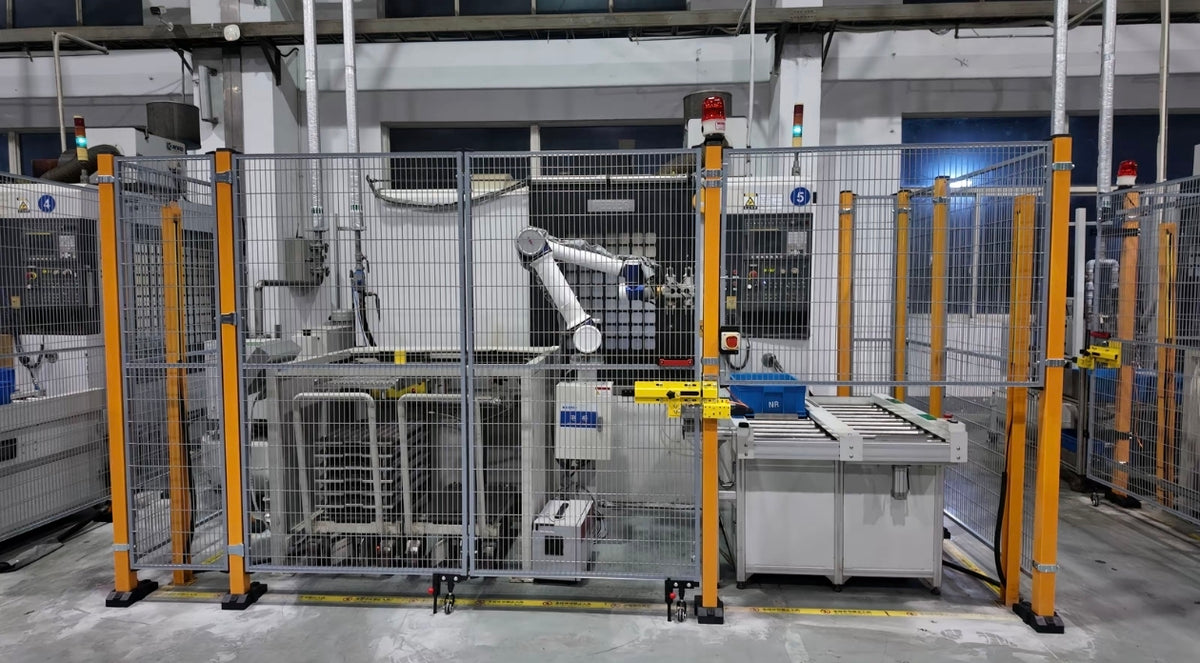

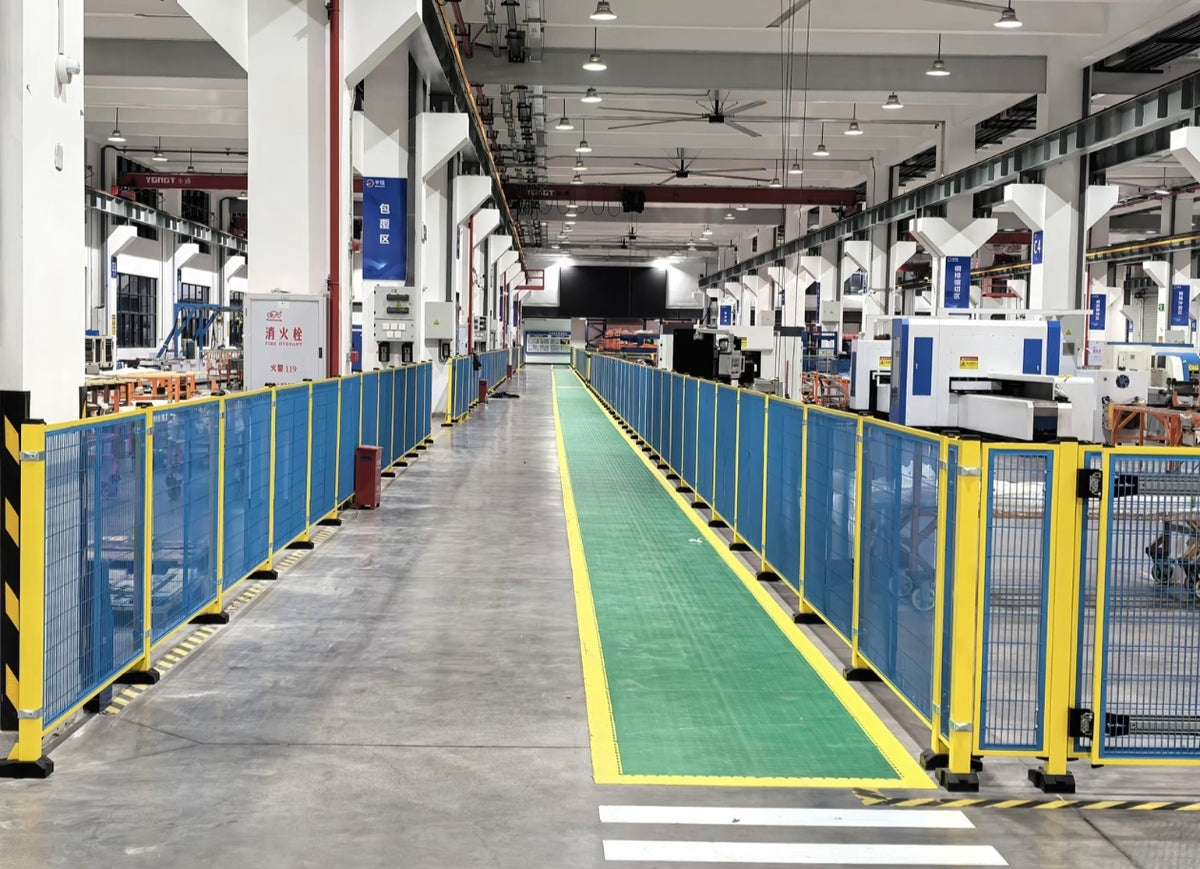

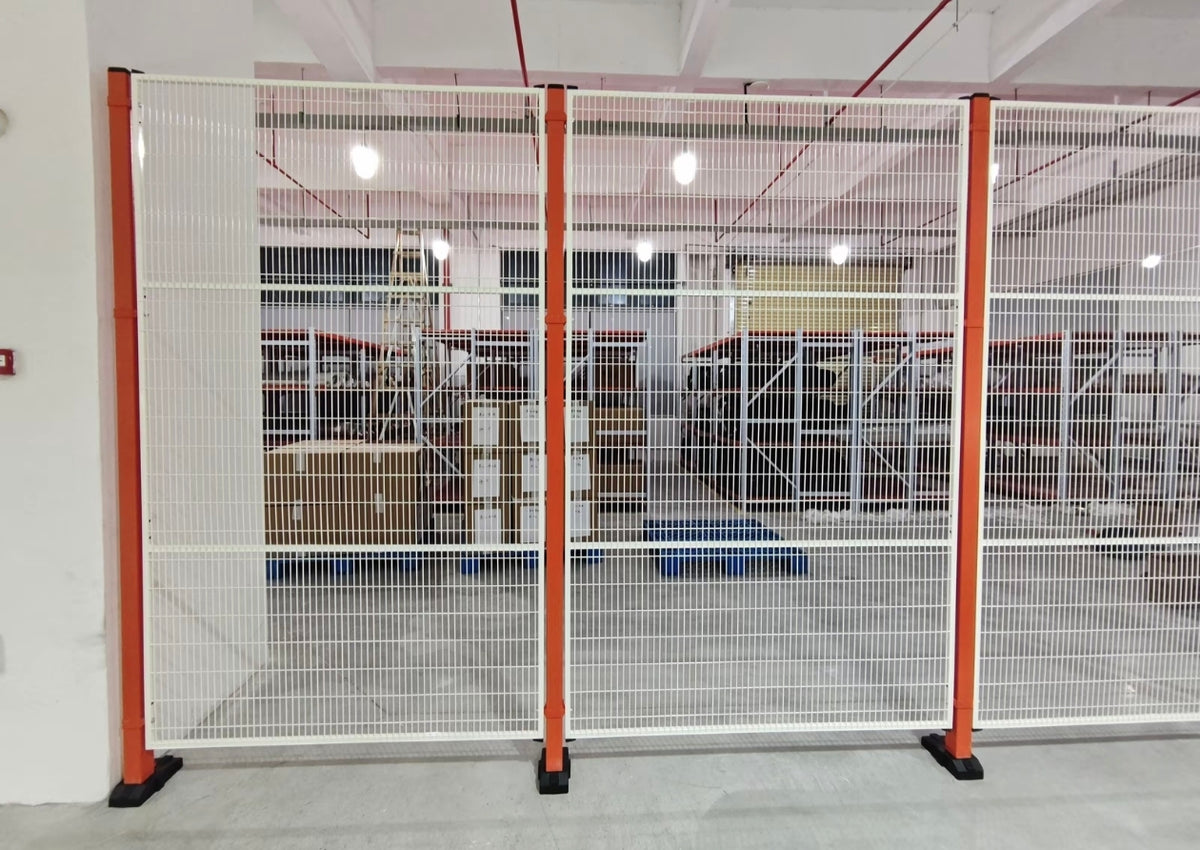

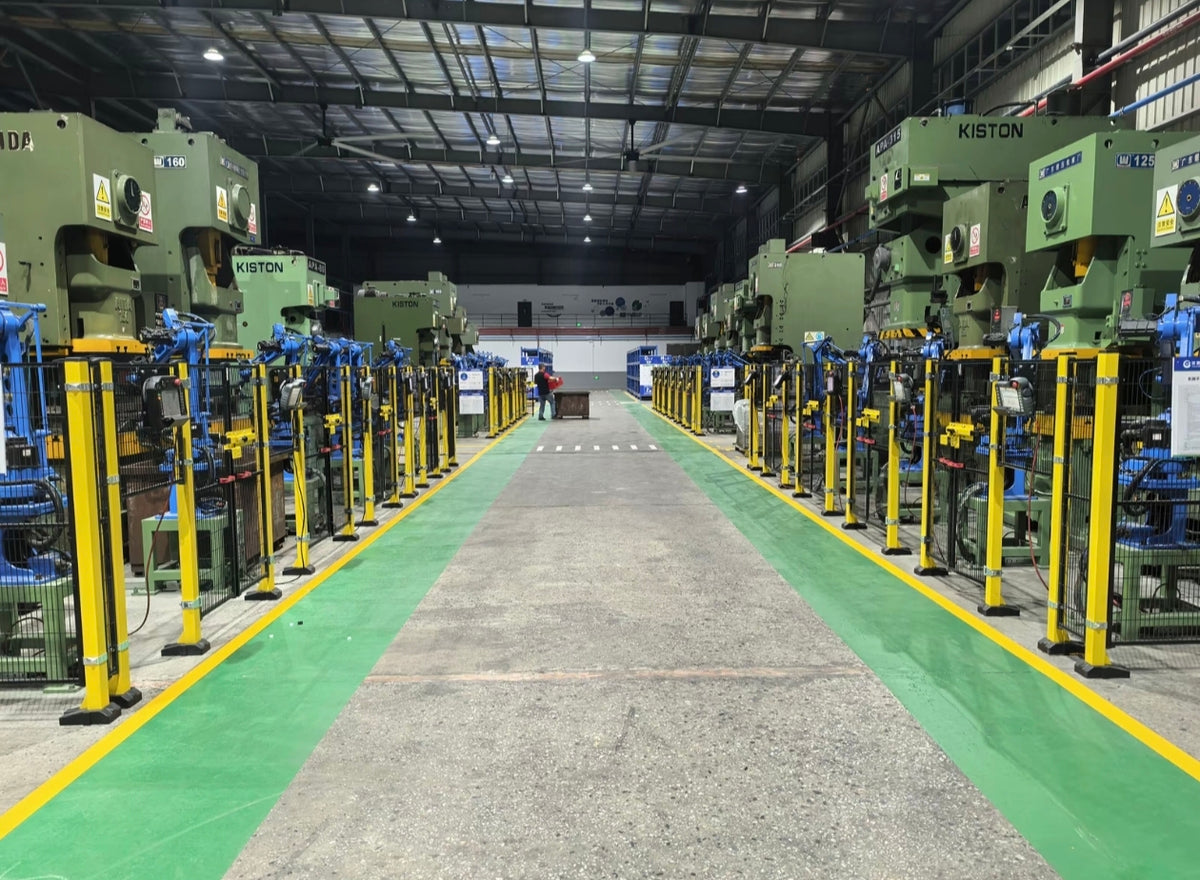

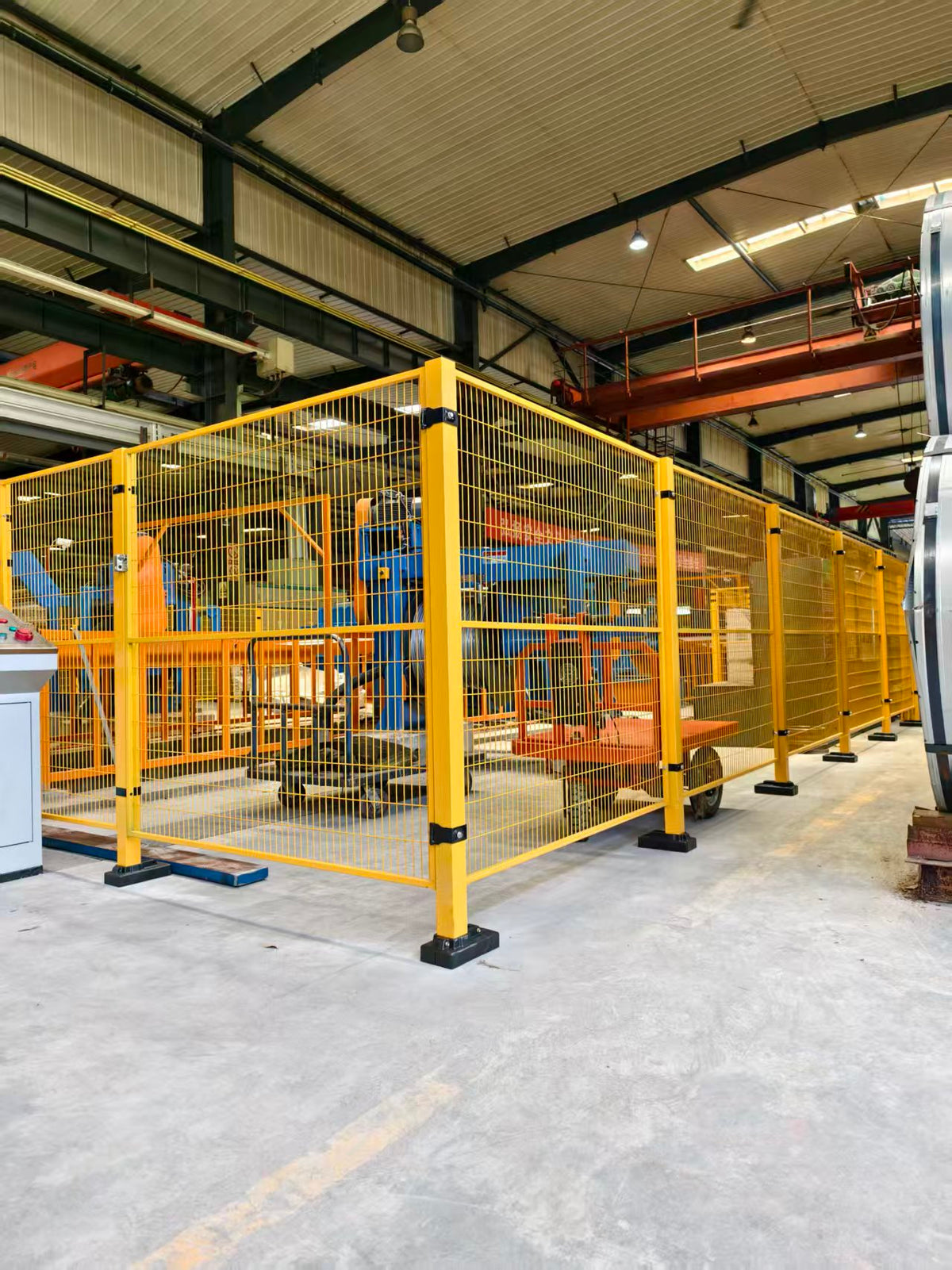

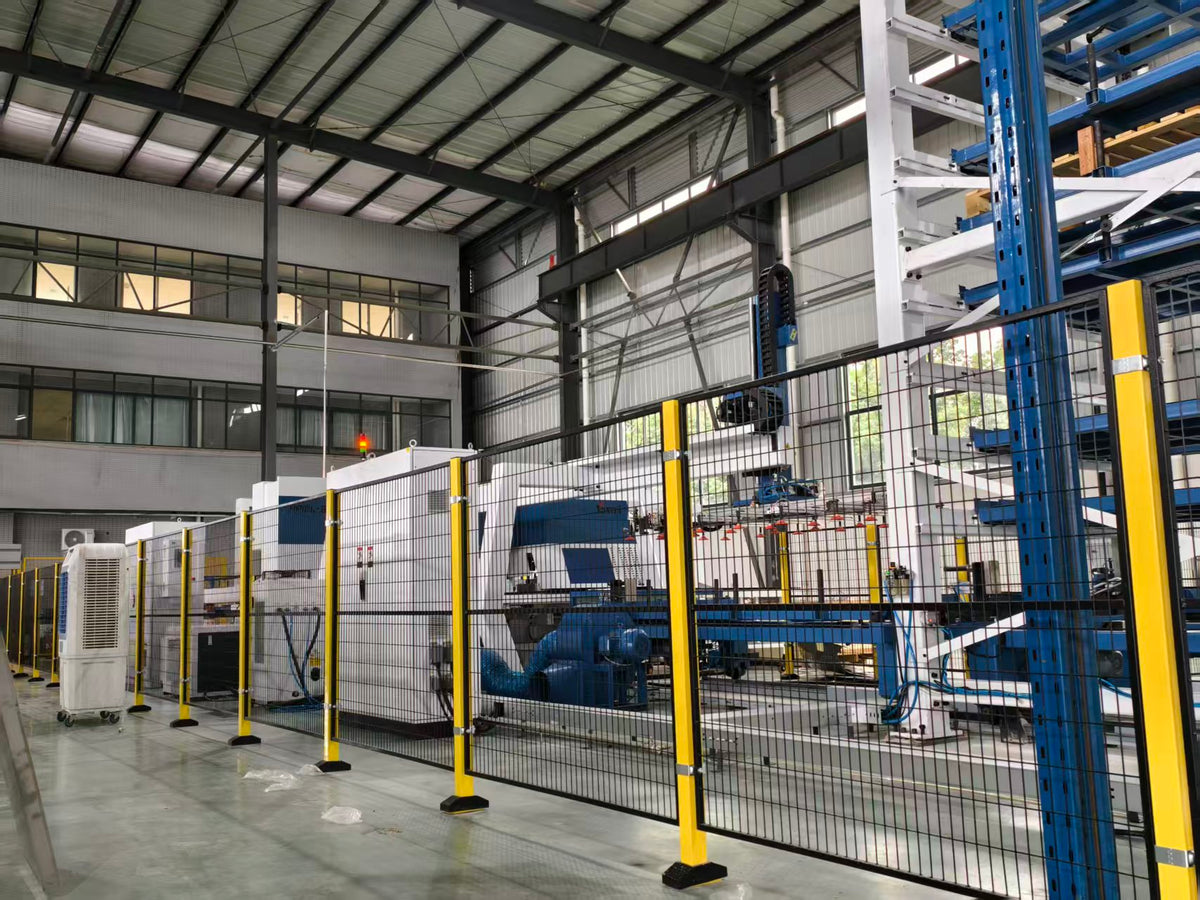

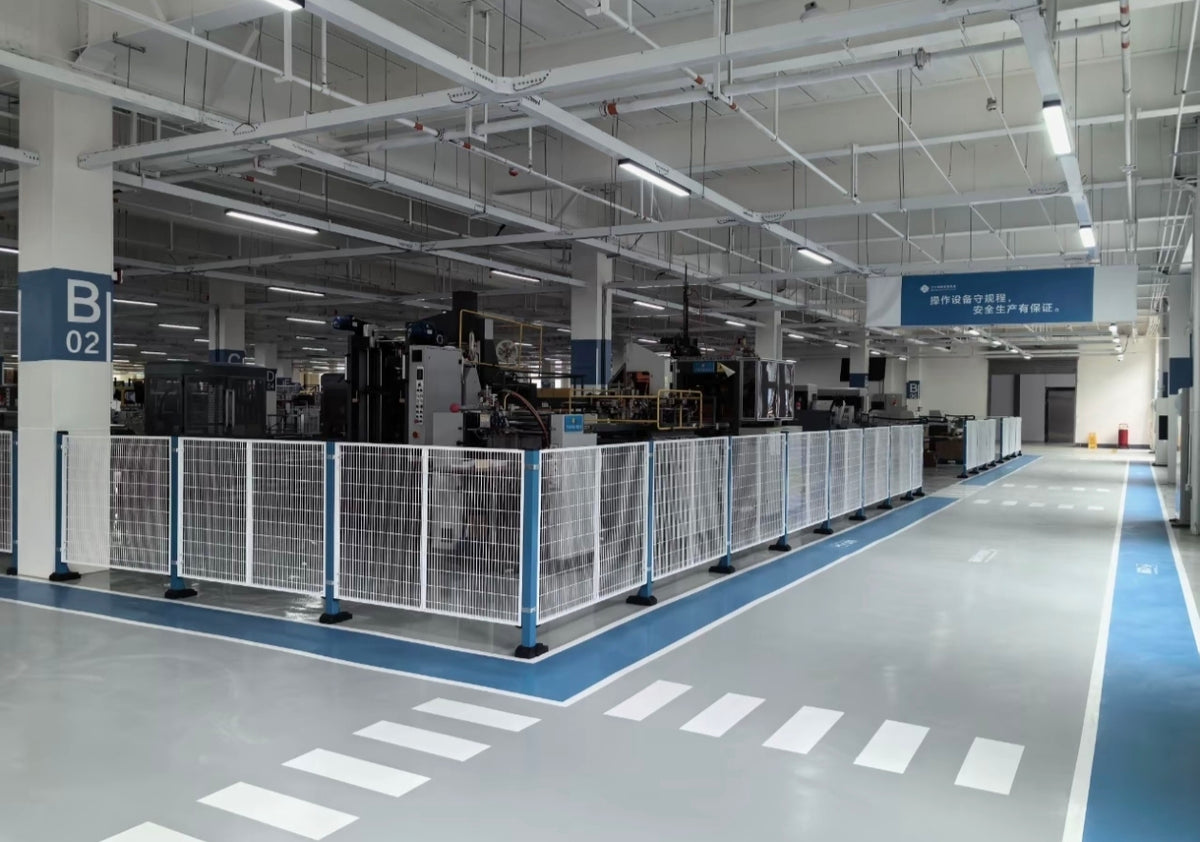

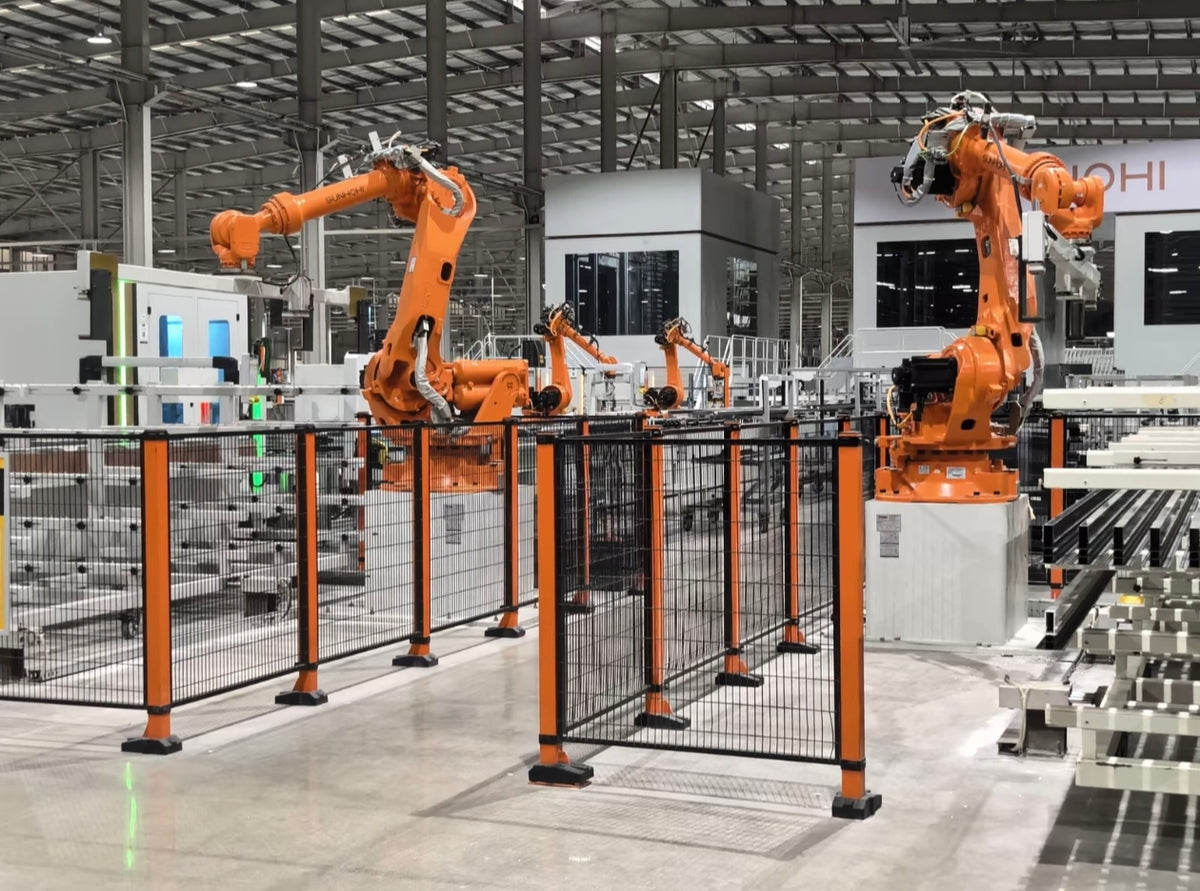

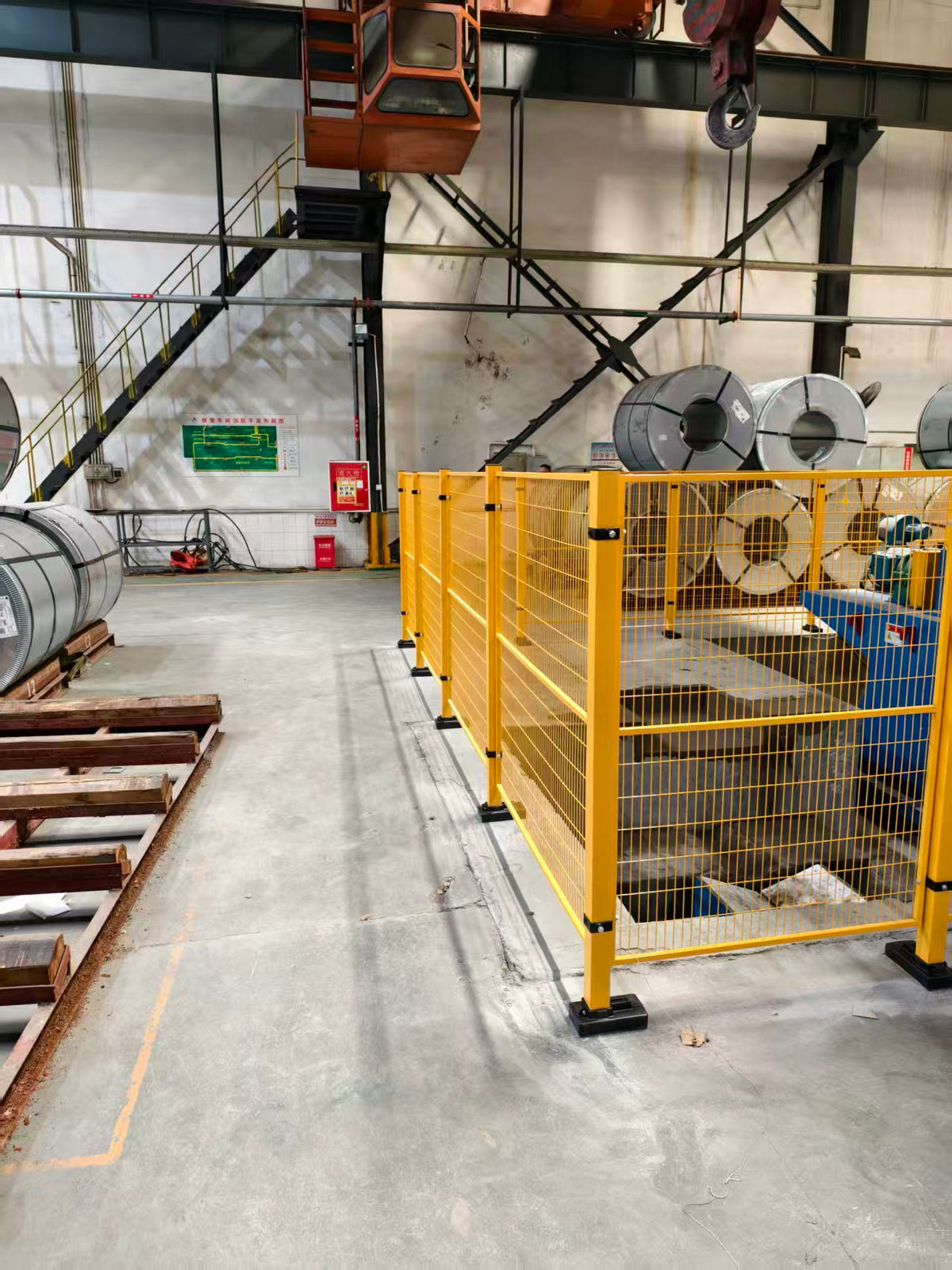

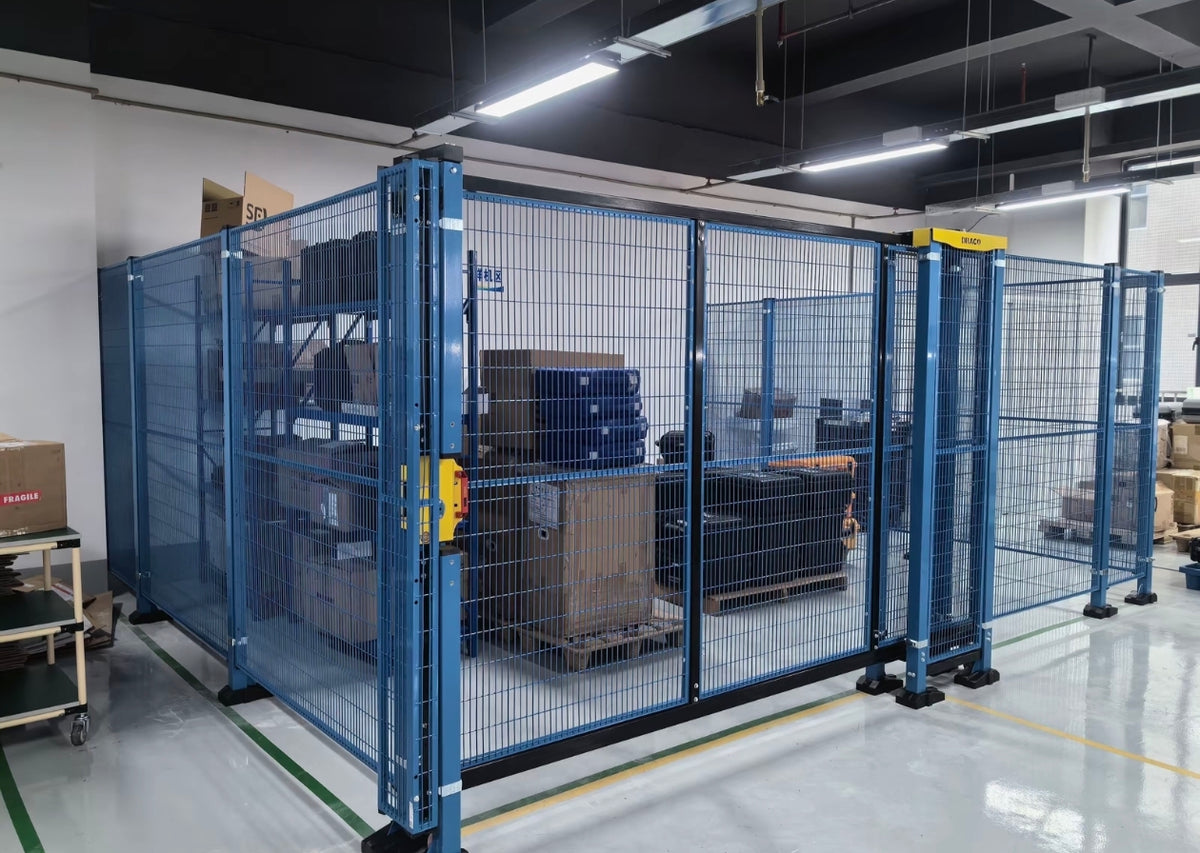

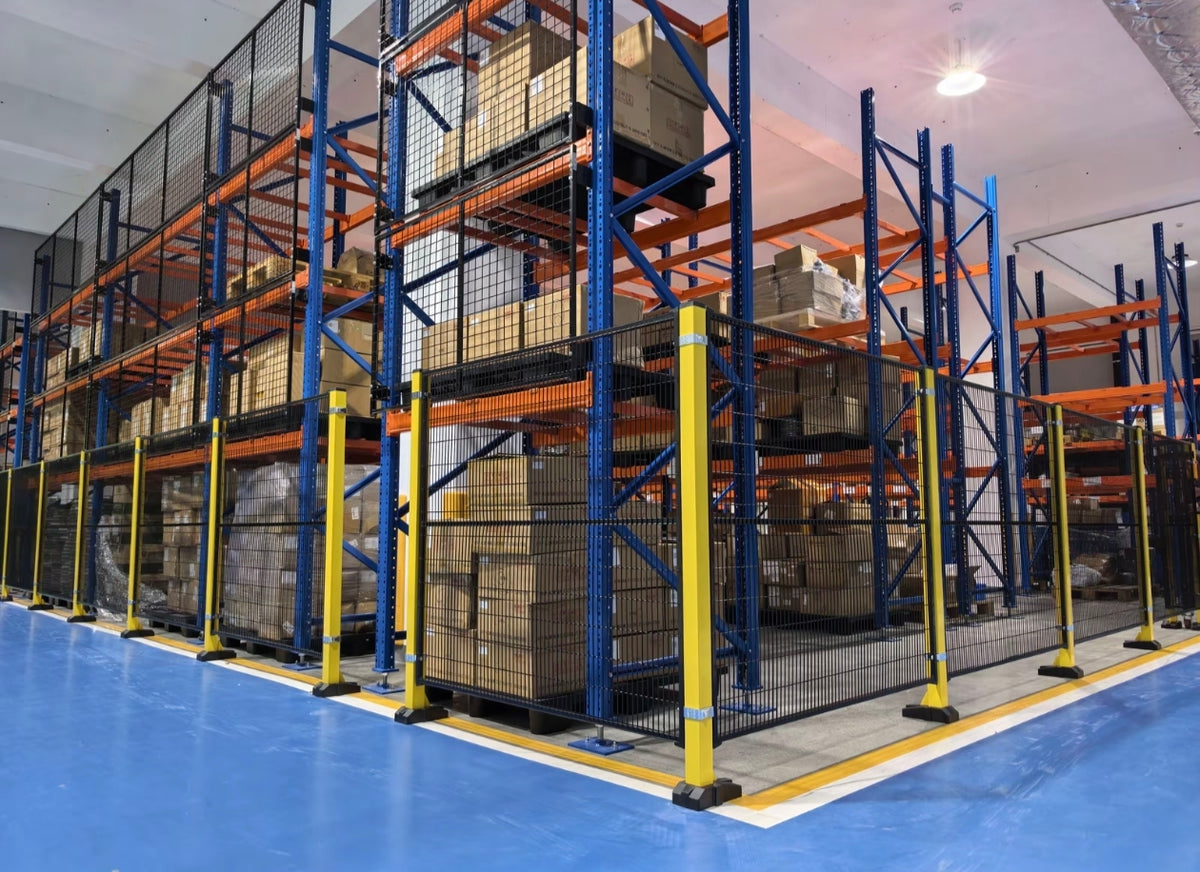

APPLICATION REFERENCES
Application gallery
These images are shown as application references only. Country, customer, project problem and solution details are intentionally not claimed until verified.
ORDER & DELIVERY
Packaging, pricing boundary & delivery
Supply modeMade to order
Lead timeConfirmed with quotation
Website price includes
- China-side export preparation allowance
Quoted / charged separately
- International freight
- Import duties
- VAT / GST or other destination taxes
- Destination charges
- Local delivery
Small quantities may require shipment-level origin handling because some export costs are charged per shipment rather than per unit.
REQUEST A QUOTE
Send what you already know. We can complete the rest with you.
Selected height and widthQuantityEnclosure layout or overall dimensionsNumber of doorsDestination countryDestination city / postal codeRequired delivery date
